API Reference¶

Complete REST API reference for BuckPow.

Overview¶

BuckPow exposes a RESTful API under /api/v1/. The API supports:

JSON request/response for all endpoints
JWT authentication for user endpoints
API key authentication for device endpoints
Pagination for list endpoints

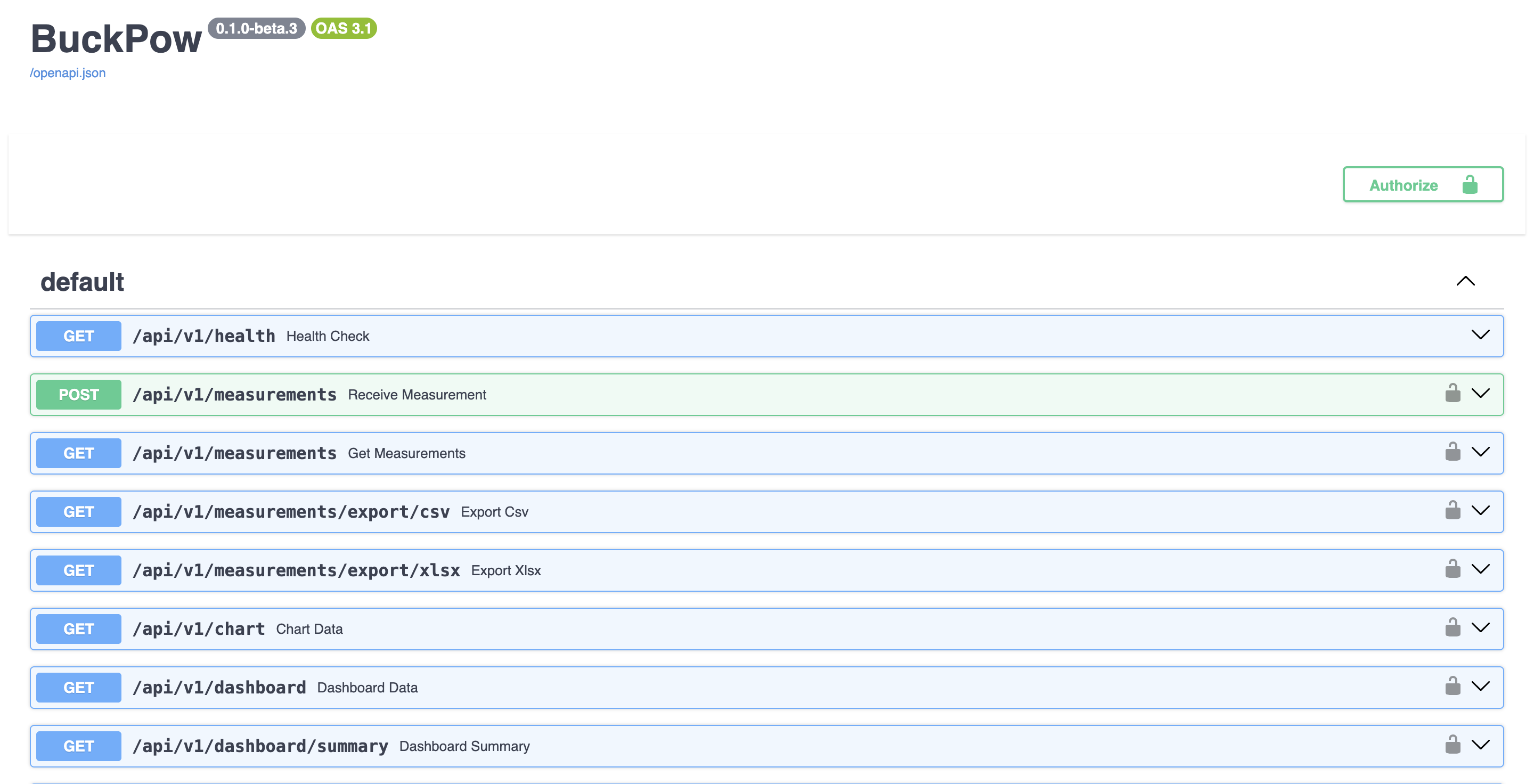

Swagger UI

Base URL¶

http://localhost:8000/api/v1

Authentication¶

JWT Token (User)¶

Obtain a token via login:

curl -X POST http://localhost:8000/api/v1/auth/login \
  -H 'Content-Type: application/json' \
  -d '{"email":"admin@example.com","password":"password"}'

Use the token in requests:

curl http://localhost:8000/api/v1/devices \
  -H 'Authorization: Bearer <jwt-token>'

API Key (Node)¶

Obtain the key from the node detail page, then:

curl -X POST http://localhost:8000/api/v1/measurements \
  -H 'Content-Type: application/json' \
  -H 'Authorization: Bearer <api-key>' \
  -d '{"device_id":"esp32-01","bus_voltage":5.0,"shunt_voltage":50,"current":150,"power":750}'

Response Format¶

Success¶

{
  "status": "success",
  "id": 1
}

Error¶

{
  "error": "Error message",
  "code": "ERROR_CODE"
}

Paginated List¶

{
  "items": [...],
  "page": 1,
  "pages": 10,
  "total": 100,
  "per_page": 10
}

Health¶

Health Check¶

GET /api/v1/health

Authentication: None

Response:

{
  "status": "ok",
  "version": "0.1.0",
  "min_firmware_version": "1.0.0"
}

Measurements¶

Receive Measurement¶

POST /api/v1/measurements

Authentication: Device API key (or none if DEVICE_AUTH_ENABLED=false)

Request Body:

{
  "device_id": "esp32-ina219-01",
  "bus_voltage": 5.12,
  "shunt_voltage": 82,
  "current": 241,
  "power": 1234,
  "firmware_version": "1.2.0"
}

Field	Type	Required	Description
`device_id`	string	Yes	Device identifier (auto-registers if new)
`bus_voltage`	float	Yes	Bus voltage (V)
`shunt_voltage`	float	Yes	Shunt voltage (mV)
`current`	float	Yes	Current (mA)
`power`	float	Yes	Power (mW)
`firmware_version`	string	No	Firmware version string

Response (201):

{
  "status": "success",
  "id": 1
}

Unit conversion

The API converts mA → A and mW → W when storing measurements.

List Measurements¶

GET /api/v1/measurements

Authentication: JWT token

Parameters:

Parameter	Type	Default	Description
`page`	integer	1	Page number
`per_page`	integer	50	Items per page
`device_id`	integer	—	Filter by device ID
`session_id`	integer	—	Filter by session ID
`start_date`	string	—	Start date (ISO 8601)
`end_date`	string	—	End date (ISO 8601)

Response (200):

{
  "measurements": [
    {
      "id": 1,
      "device_id": 1,
      "device_name": "esp32-ina219-01",
      "session_id": 1,
      "session_name": "FW v1.0 Idle",
      "bus_voltage": 5.120,
      "shunt_voltage": 0.082,
      "load_voltage": 5.038,
      "current": 0.241,
      "power": 1.234,
      "energy": 0.000343,
      "created_at": "2026-07-18T10:00:00+00:00"
    }
  ],
  "page": 1,
  "pages": 10,
  "total": 500,
  "per_page": 50
}

Export CSV¶

GET /api/v1/measurements/export/csv

Authentication: JWT token

Parameters: Same as list measurements

Response (200):

Content-Type: text/csv
Content-Disposition: attachment; filename=measurements.csv

ID,Node,Session,Bus Voltage,Shunt Voltage,Load Voltage,Current (A),Power (W),Energy (Wh),Timestamp
1,esp32-ina219-01,FW v1.0 Idle,5.120,0.082,5.038,0.241,1.234,0.000343,2026-07-18T10:00:00+00:00

Export XLSX¶

GET /api/v1/measurements/export/xlsx

Authentication: JWT token

Parameters: Same as list measurements

Response (200):

Content-Type: application/vnd.openxmlformats-officedocument.spreadsheetml.sheet
Content-Disposition: attachment; filename=measurements.xlsx

Chart Data¶

GET /api/v1/chart

Authentication: JWT token

Parameters:

Parameter	Type	Default	Description
`device_id`	integer	—	Filter by device ID
`session_id`	integer	—	Filter by session ID
`limit`	integer	500	Max data points
`granularity`	string	—	`s`, `m`, `h`, `d`
`range`	string	—	`1h`, `24h`, `7d`, `30d`
`start_date`	string	—	Start date (ISO 8601)
`end_date`	string	—	End date (ISO 8601)

Response (200):

{
  "labels": ["10:00:00", "10:00:01", "..."],
  "voltage": [5.12, 5.11, "..."],
  "current": [0.241, 0.239, "..."],
  "power": [1.234, 1.223, "..."],
  "energy": [0.000343, 0.000686, "..."]
}

Nodes¶

List Nodes¶

GET /api/v1/devices

Authentication: JWT token

Parameters:

Parameter	Type	Default	Description
`page`	integer	1	Page number (0 = all)
`per_page`	integer	10	Items per page

Response (200):

{
  "devices": [
    {
      "id": 1,
      "device_id": "esp32-ina219-01",
      "alias": "Lab Sensor",
      "description": "INA219 on power supply",
      "sampling_interval": 1,
      "last_seen": "2026-07-18T10:05:00+00:00",
      "status": "online",
      "api_key": "a1b2c3****ef01",
      "enabled": true,
"firmware_version": "1.2.0",
      "local_ip": "192.168.1.100",
      "project_id": 1,
      "project_name": "Power Lab",
      "high_current_threshold": 0.5,
      "high_power_threshold": 2.5,
      "low_voltage_threshold": 4.5,
      "created_at": "2026-07-18T09:00:00+00:00",
      "updated_at": "2026-07-18T10:05:00+00:00"
    }
  ],
  "page": 1,
  "pages": 5,
  "total": 50,
  "per_page": 10
}

Create Device¶

POST /api/v1/devices

Authentication: JWT token

Request Body:

{
  "device_id": "esp32-ina219-01",
  "alias": "Lab Sensor",
  "description": "INA219 on power supply",
  "sampling_interval": 1,
  "project_id": 1,
  "firmware_version": "1.2.0",
  "high_current_threshold": 0.5,
  "high_power_threshold": 2.5,
  "low_voltage_threshold": 4.5
}

Field	Type	Required	Description
`device_id`	string	Yes	Unique device identifier
`alias`	string	No	Friendly name
`description`	string	No	Notes
`sampling_interval`	integer	No	Seconds (default: 1)
`project_id`	integer	No	Project ID
`firmware_version`	string	No	Firmware version
`high_current_threshold`	float	No	Alert threshold (A)
`high_power_threshold`	float	No	Alert threshold (W)
`low_voltage_threshold`	float	No	Alert threshold (V)

Response (201): Device object with generated id and api_key

Get Device¶

GET /api/v1/devices/{device_id}

Authentication: JWT token

Response (200): Device object

Update Device¶

PUT /api/v1/devices/{device_id}

Authentication: JWT token (owner check)

Request Body: Same as create (all fields optional)

Response (200): Updated device object

Delete Device¶

DELETE /api/v1/devices/{device_id}

Authentication: JWT token (owner check)

Response (200):

{"status": "deleted"}

Get API Key¶

GET /api/v1/devices/{device_id}/key

Authentication: JWT token

Response (200):

{
  "api_key": "a1b2c3d4e5f67890abcdef1234567890abcdef1234567890abcdef1234567890",
  "id": 1
}

Toggle Device¶

PATCH /api/v1/devices/{device_id}/toggle

Authentication: JWT token (owner check)

Response (200): Updated device object with enabled toggled

Regenerate API Key¶

POST /api/v1/devices/{device_id}/regenerate-key

Authentication: JWT token (owner check)

Response (200):

{
  "api_key": "new-api-key-here",
  "id": 1
}

Old key invalidated

The old API key is immediately invalidated after regeneration.

Update Device Local IP¶

PATCH /api/v1/devices/local-ip

Authentication: Device Bearer token (API key)

Request Body:

{
  "local_ip": "192.168.1.100"
}

Field	Type	Required	Description
`local_ip`	string	Yes	Device local IP address

Response (200):

{
  "status": "ok",
  "local_ip": "192.168.1.100"
}

Firmware usage

Firmware calls this endpoint once after WiFi connects and the first successful API call is made. The ipReported flag prevents resending on every measurement.

Sessions¶

List Sessions¶

GET /api/v1/sessions

Authentication: JWT token

Parameters:

Parameter	Type	Default	Description
`page`	integer	1	Page number (0 = all with stats)
`per_page`	integer	10	Items per page

Response (200):

{
  "sessions": [
    {
      "id": 1,
      "device_id": 1,
      "device_name": "esp32-ina219-01",
      "name": "FW v1.0 Idle",
      "target_device": "Raspberry Pi 4",
      "description": "Idle power test",
      "status": "finished",
      "project_id": 1,
      "project_name": "Power Lab",
      "started_at": "2026-07-18T10:00:00+00:00",
      "ended_at": "2026-07-18T10:10:00+00:00",
      "created_at": "2026-07-18T09:55:00+00:00",
      "updated_at": "2026-07-18T10:10:00+00:00",
      "avg_power": 0.185,
      "total_energy": 0.031
    }
  ],
  "page": 1,
  "pages": 5,
  "total": 50,
  "per_page": 10
}

Create Session¶

POST /api/v1/sessions

Authentication: JWT token

Request Body:

{
  "device_id": 1,
  "name": "FW v1.0 Idle",
  "target_device": "Raspberry Pi 4",
  "description": "Idle power test",
  "project_id": 1
}

Field	Type	Required	Description
`device_id`	integer	Yes	Device ID
`name`	string	Yes	Session name
`target_device`	string	No	Device under test
`description`	string	No	Notes
`project_id`	integer	No	Project ID

Response (201): Session object with status: "draft"

Get Session¶

GET /api/v1/sessions/{session_id}

Authentication: JWT token

Response (200): Session object

Update Session¶

PUT /api/v1/sessions/{session_id}

Authentication: JWT token

Request Body: Same as create (all fields optional)

Response (200): Updated session object

Delete Session¶

DELETE /api/v1/sessions/{session_id}

Authentication: JWT token

Response (200):

{"status": "deleted"}

Start Session¶

POST /api/v1/sessions/{session_id}/start

Authentication: JWT token

Response (200): Updated session object with status: "running" and started_at

Errors:

400 — Session is already running
400 — Another session is already running for this device

Stop Session¶

POST /api/v1/sessions/{session_id}/stop

Authentication: JWT token

Response (200): Updated session object with status: "finished" and ended_at

Errors:

400 — Session is not running

Session Statistics¶

GET /api/v1/sessions/{session_id}/stats

Authentication: JWT token

Response (200):

{
  "session_id": 1,
  "session_name": "FW v1.0 Idle",
  "device_name": "esp32-ina219-01",
  "avg_power": 0.185,
  "peak_power": 0.234,
  "total_energy": 0.031,
  "avg_current": 0.036,
  "voltage_stddev": 0.008,
  "duration": 600,
  "measurement_count": 600,
  "started_at": "2026-07-18T10:00:00+00:00",
  "ended_at": "2026-07-18T10:10:00+00:00",
  "chart_data": {
    "labels": ["10:00:00", "..."],
    "power": [0.185, "..."]
  }
}

Projects¶

List Projects¶

GET /api/v1/projects

Authentication: JWT token

Parameters:

Parameter	Type	Default	Description
`page`	integer	1	Page number (0 = all)
`per_page`	integer	10	Items per page

Response (200):

{
  "projects": [
    {
      "id": 1,
      "name": "Power Lab",
      "description": "Lab experiments",
      "owner_id": 1,
      "created_at": "2026-07-18T09:00:00+00:00",
      "updated_at": "2026-07-18T09:00:00+00:00"
    }
  ],
  "page": 1,
  "pages": 2,
  "total": 15,
  "per_page": 10
}

Create Project¶

POST /api/v1/projects

Authentication: JWT token

Request Body:

{
  "name": "Power Lab",
  "description": "Lab experiments"
}

Field	Type	Required	Description
`name`	string	Yes	Project name
`description`	string	No	Notes

Response (201): Project object with owner_id set to current user

Get Project¶

GET /api/v1/projects/{project_id}

Authentication: JWT token

Response (200): Project object

Update Project¶

PUT /api/v1/projects/{project_id}

Authentication: JWT token (owner check)

Request Body: Same as create (all fields optional)

Response (200): Updated project object

Delete Project¶

DELETE /api/v1/projects/{project_id}

Authentication: JWT token (owner check)

Response (200):

{"status": "deleted"}

Alerts¶

List Alerts¶

GET /api/v1/alerts

Authentication: JWT token

Parameters:

Parameter	Type	Default	Description
`page`	integer	1	Page number
`per_page`	integer	10	Items per page
`device_id`	integer	—	Filter by device ID
`level`	string	—	`info`, `warning`, `critical`
`resolved`	string	—	`true` or `false`

Response (200):

{
  "alerts": [
    {
      "id": 1,
      "device_id": 1,
      "device_name": "esp32-ina219-01",
      "level": "critical",
      "message": "High power on esp32-ina219-01: 3.450W (threshold: 2.5W)",
      "created_at": "2026-07-18T10:05:00+00:00",
      "resolved_at": null
    }
  ],
  "page": 1,
  "pages": 3,
  "total": 25,
  "per_page": 10,
  "unresolved_count": 5
}

Create Alert¶

POST /api/v1/alerts

Authentication: JWT token

Request Body:

{
  "device_id": 1,
  "level": "warning",
  "message": "Custom alert message"
}

Field	Type	Required	Description
`device_id`	integer	Yes	Device ID
`level`	string	Yes	`info`, `warning`, `critical`
`message`	string	Yes	Alert message

Response (201): Alert object

Resolve Alert¶

PATCH /api/v1/alerts/{alert_id}/resolve

Authentication: JWT token

Response (200): Alert object with resolved_at set

Resolve All Alerts¶

POST /api/v1/alerts/resolve-all

Authentication: JWT token

Parameters:

Parameter	Type	Description
`device_id`	integer	Optional: resolve only for this device

Response (200):

{"status": "ok"}

Benchmark¶

Compare Sessions¶

GET /api/v1/benchmark/compare

Authentication: JWT token

Parameters:

Parameter	Type	Required	Description
`sessions`	string	Yes	Comma-separated session IDs (2–3)

Example:

curl "http://localhost:8000/api/v1/benchmark/compare?sessions=1,2,3" \
  -H 'Authorization: Bearer <jwt-token>'

Response (200):

{
  "sessions": [
    {
      "session_id": 1,
      "session_name": "FW v1.0 Idle",
      "device_name": "esp32-ina219-01",
      "avg_power": 0.185,
      "peak_power": 0.234,
      "total_energy": 0.031,
      "avg_current": 0.036,
      "voltage_stddev": 0.008,
      "duration": 600,
      "measurement_count": 600,
      "started_at": "2026-07-18T10:00:00+00:00",
      "ended_at": "2026-07-18T10:10:00+00:00",
      "chart_data": {
        "labels": ["10:00:00", "..."],
        "power": [0.185, "..."]
      }
    }
  ]
}

Authentication¶

POST /api/v1/auth/login

Request Body:

{
  "email": "admin@example.com",
  "password": "password"
}

Response (200):

{
  "status": "ok",
  "user": {
    "id": 1,
    "name": "Admin",
    "email": "admin@example.com",
    "created_at": "2026-07-18T09:00:00+00:00"
  },
  "token": "eyJ..."
}

Sets an httponly cookie access_token for dashboard access.

Logout¶

POST /api/v1/auth/logout

Response (200):

{"status": "ok"}

Clears the access_token cookie.

Current User¶

GET /api/v1/auth/me

Authentication: JWT token

Response (200):

{
  "id": 1,
  "name": "Admin",
  "email": "admin@example.com",
  "created_at": "2026-07-18T09:00:00+00:00"
}

Update Profile¶

PUT /api/v1/auth/profile

Authentication: JWT token

Request Body:

{
  "name": "New Name",
  "email": "new@example.com",
  "password": "new-password"
}

All fields optional. Only provided fields are updated.

Response (200):

{
  "status": "ok",
  "user": {
    "id": 1,
    "name": "New Name",
    "email": "new@example.com",
    "created_at": "2026-07-18T09:00:00+00:00"
  }
}

Settings¶

Get Settings¶

GET /api/v1/settings

Authentication: JWT token

Response (200):

{
  "high_power_threshold": 2.5,
  "high_current_threshold": 0.5,
  "low_voltage_threshold": 4.5,
  "brand": "BuckPow",
  "timestamp_format": "24h",
  "date_format": "YYYY-MM-DD",
  "timezone": "+0",
  "device_watchdog_timeout": 30
}

Update Settings¶

PUT /api/v1/settings

Authentication: JWT token

Request Body:

{
  "high_power_threshold": 3.0,
  "brand": "My Lab",
  "timestamp_format": "12h",
  "date_format": "DD/MM/YYYY",
  "timezone": "+8"
}

All fields optional.

Response (200): Updated settings object

Database Info¶

GET /api/v1/settings/db-info

Authentication: JWT token

Response (200):

{
  "type": "sqlite",
  "size": 1258291,
  "backup_formats": {
    "sqlite": true,
    "sql_dump": false
  },
  "tool_available": true
}

Download Backup¶

GET /api/v1/settings/backup

Authentication: JWT token

Response (200):

SQLite: Raw .db file
PostgreSQL: Gzipped SQL dump
MySQL: Gzipped SQL dump

Audit Logs¶

List Audit Logs¶

GET /api/v1/audit/logs

Authentication: JWT token

Parameters:

Parameter	Type	Default	Description
`page`	integer	1	Page number
`per_page`	integer	10	Items per page
`action`	string	—	Filter by action
`target_type`	string	—	Filter by target type

Response (200):

{
  "logs": [
    {
      "id": 1,
      "user_id": 1,
      "user_name": "Admin",
      "action": "device.create",
      "target_type": "device",
      "target_id": 1,
      "details": {},
      "ip_address": "192.168.1.100",
      "created_at": "2026-07-18T09:00:00+00:00"
    }
  ],
  "page": 1,
  "pages": 10,
  "total": 100,
  "per_page": 10
}

Audit Actions¶

Action	Description
`device.create`	Device created
`device.update`	Device updated
`device.delete`	Device deleted
`device.enable`	Device enabled
`device.disable`	Device disabled
`api_key.regenerate`	API key regenerated
`session.start`	Session started
`session.stop`	Session stopped
`export.csv`	CSV export
`export.xlsx`	XLSX export

Dashboard¶

Latest Data¶

GET /api/v1/dashboard

Authentication: None

Response (200):

{
  "latest": {
    "bus_voltage": 5.12,
    "shunt_voltage": 0.082,
    "load_voltage": 5.038,
    "current": 0.241,
    "power": 1.234,
    "energy": 0.000343,
    "created_at": "2026-07-18T10:05:00+00:00"
  },
  "devices": [
    {
      "id": 1,
      "device_id": "esp32-ina219-01",
      "status": "online"
    }
  ]
}

Summary¶

GET /api/v1/dashboard/summary

Authentication: None

Response (200):

{
  "online_devices": 3,
  "offline_devices": 1,
  "active_sessions": 2,
  "today_energy": 0.125,
  "total_projects": 5
}

Statistics¶

GET /api/v1/dashboard/statistics

Authentication: None

Parameters:

Parameter	Type	Description
`session_id`	integer	Filter by session ID
`start_date`	string	Start date (ISO 8601)

Response (200):

{
  "voltage": {"min": 5.05, "max": 5.15, "avg": 5.10},
  "current": {"min": 0.20, "max": 0.30, "avg": 0.24},
  "power": {"min": 1.0, "max": 1.5, "avg": 1.23, "peak": 1.8},
  "total_energy": 0.031,
  "energy": {
    "hourly": [{"period": "10:00", "energy": 0.005}],
    "daily": [{"period": "2026-07-18", "energy": 0.125}],
    "weekly": [{"period": "2026-W29", "energy": 0.875}],
    "monthly": [{"period": "2026-07", "energy": 3.5}]
  }
}

Rate Limits¶

Endpoint	Method	Limit	Window	Key
`/api/v1/auth/login`	POST	5	60s	IP
`/api/v1/measurements`	POST	60	60s	API key
`/api/v1/measurements/export/csv`	GET	10	60s	IP
`/api/v1/measurements/export/xlsx`	GET	10	60s	IP

When rate limited, the API returns:

{
  "error": "Rate limit exceeded",
  "code": "RATE_LIMITED"
}

With header: Retry-After: <seconds>

Interactive Documentation¶

When DISABLE_API_DOCS=false (default), interactive docs are available at:

URL	Description
`/docs`	Swagger UI
`/redoc`	ReDoc
`/openapi.json`	OpenAPI schema

API Reference¶

Overview¶

Base URL¶

Authentication¶

JWT Token (User)¶

API Key (Node)¶

Response Format¶

Success¶

Error¶

Paginated List¶

Health¶

Health Check¶

Measurements¶

Receive Measurement¶

List Measurements¶

Export CSV¶

Export XLSX¶

Chart Data¶

Nodes¶

List Nodes¶

Create Device¶

Get Device¶

Update Device¶

Delete Device¶

Get API Key¶

Toggle Device¶

Regenerate API Key¶

Update Device Local IP¶

Sessions¶

List Sessions¶

Create Session¶

Get Session¶

Update Session¶

Delete Session¶

Start Session¶

Stop Session¶

Session Statistics¶

Projects¶

List Projects¶

Create Project¶

Get Project¶

Update Project¶

Delete Project¶

Alerts¶

List Alerts¶

Create Alert¶

Resolve Alert¶

Resolve All Alerts¶

Benchmark¶

Compare Sessions¶

Authentication¶

Login¶

Logout¶

Current User¶

Update Profile¶

Settings¶

Get Settings¶

Update Settings¶

Database Info¶

Download Backup¶

Audit Logs¶

List Audit Logs¶

Audit Actions¶

Dashboard¶

Latest Data¶

Summary¶

Statistics¶

Rate Limits¶

Interactive Documentation¶
